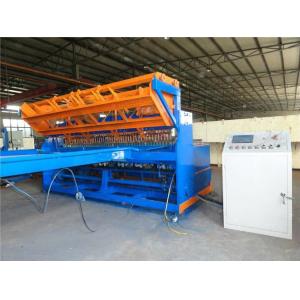

    3D Curved Fence Mesh Welding Machine / Wire Mesh Panel Welding Machine

    Ask Lasest Price
    Brand Name : MLG
    Model Number : MLG-2500
    Certification : CE
    Supply Ability : 4--5 sets per month
    Delivery Time : 30 days after receiving deposit or L/C.
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    3D Curved Fence Mesh Welding Machine / Wire Mesh Panel Welding Machine

    3D Curved Fence Mesh Panel Welding Machine / Wire Mesh Panel Welding Machine


    Main technologies


    1. The control panel is more intelligent, very easy to operate. (Panasonic PLC program)


    2. The longitude wires should be inserted into slot tunnels (cast iron material), suitable for different diameter.


    3. The cross wires are fed from cross wire feeder, controlled by step motor and SMC (Japan) air cylinder.


    4. Pure red copper (upper) and chromised bronze (lower), durable.


    5. Clutch motor and helical gear reducer connect the principal axis directly, welding stable.


    6. Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.


    7. Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.


    8. The cable drag chain is Igus brand, imported from Germany, not easily hang down.


    Technical Parameters


    ModelMLG-FP-2500AWire diameter2.5-6mm/3-5mm
    Line wire space50-300mmCross wire space25/12.5mm-300mm
    Width of meshMax.2.5mLength of meshMax.6m
    Welding electrodes48pcsWelding speed50-75 times/min
    Rated electrical power125kva*6pcsNeeded powerMin.160kva
    Weight4.2TOverall size5.4m*3.2*1.7m


    After-sales service


    1. Guarantee time: 1 year since machine was installed at your factory but within 18 months against B/L date.
    2. Within guarantee time, if any components are broken under normal condition, we can change for free.
    3. We can send our best technician to buyer’s factory for installation, debugging and training.
    4. Complete installation instructions, circuit diagram, manual operations and machine layout.
    5. Timely reply for your machine questions.
